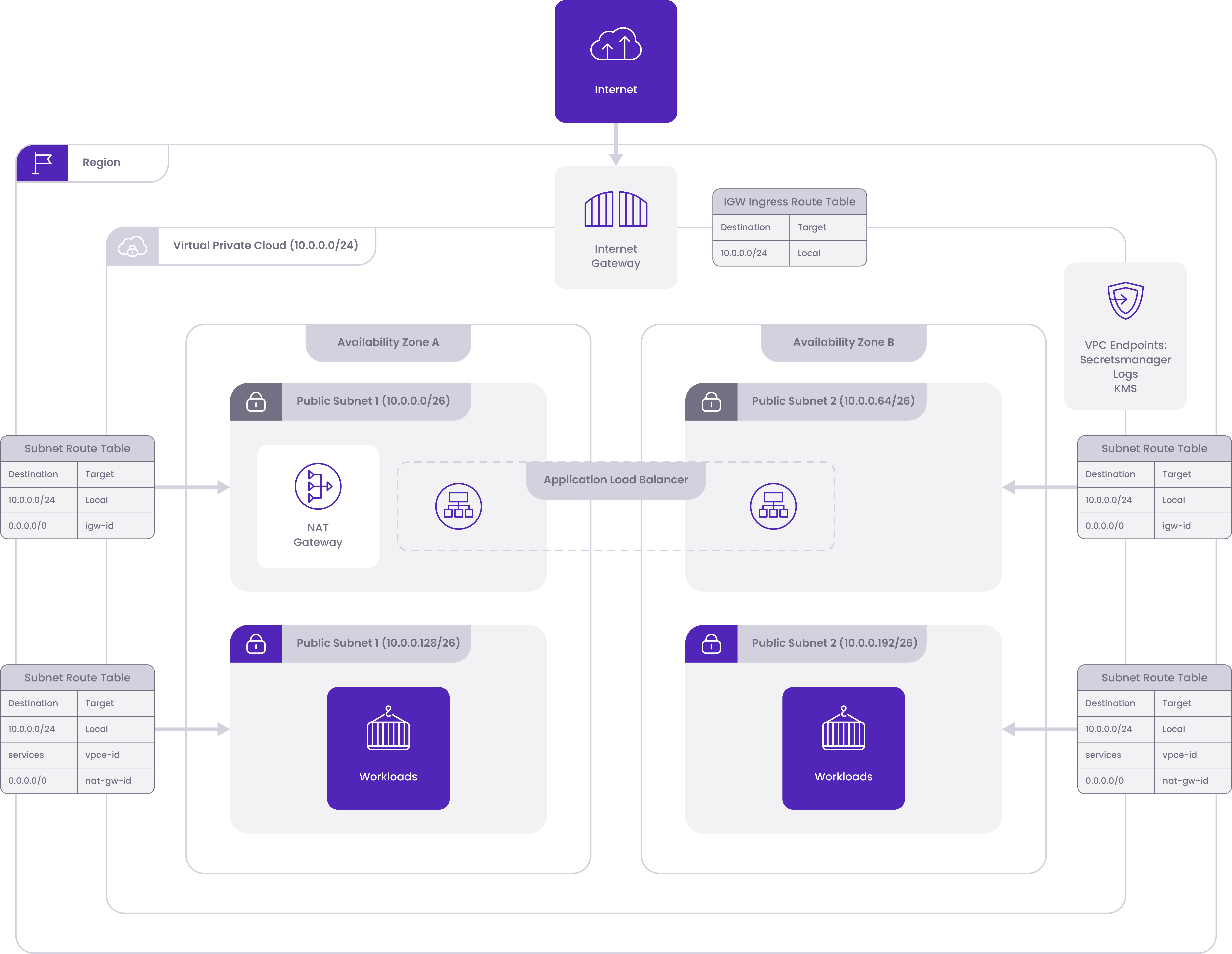

High-level AWS Deployment Networking Diagram

Recommended Service and Infrastructure Sizing

Here is a comprehensive list of Institutional Vault AWS-recommended services and infrastructure sizes:

Service Name	Resource Type	CPU Cores	Memory (GB)	AWS Specification
Wallet service	microservice container	1	1	container
Approval service	microservice container	0.5	0.5	container
Orchestrator facade	microservice container	0.5	0.5	container
Message Broker	microservice container	0.5	0.5	container
MPA Policy-nodes (x3)	virtual machine instance	4	16	m5.xlarge
Relational Database	database PaaS	2	4	t4g.medium

Service Limits and Quotas

You don't need to request any limit increases for default Service Quotas when using the Automated AWS deployment tooling.
